home > night vision optics > military night vision optics > high performance image intensifier tube
Art No. : high performance image intensifier tube require sample
empty

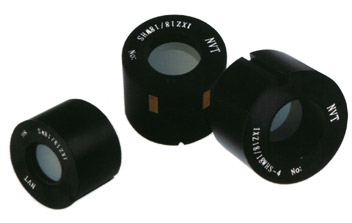

This series of modules are electrostatically focused, image inverted, with S25 photocathode, microchannel plate and P20 or P39 Phosphor. Their magnification is 1 or larger than 1.

This series of assembly includes modules and integral high voltage power supply. Their features are outstanding, such as small size, no distortion, polarity protection, autobrightness control, flash protection and lower input current, etc. They are able to operate in different environmental conditions conformed to environmental test requirements of products, such as high temperature low temperature vibration and shock.

The inverter tubes can be supplied with electrical interfaces either flying lead or connector. In addition, the inverter tubes can be made in standard gain or high gain which can be controlled inside or outside tube. The input window or output window can have the characteristic of anti corona, static electricity protection, etc.

Type 1XZ18/18WS
(xx1950)
1XZ18/18WS-1
(xx1940)
1XZ18/18WHS
(xx2050)
1XZ18/18WHS-1
(xx2040)
useful dia.
Input mm 20 20 25 25
output mm 30 30 25 25
Window
Inout mm FO FO FO FO
output mm FO FO FO G
Gathode S25 S25 S25 S25

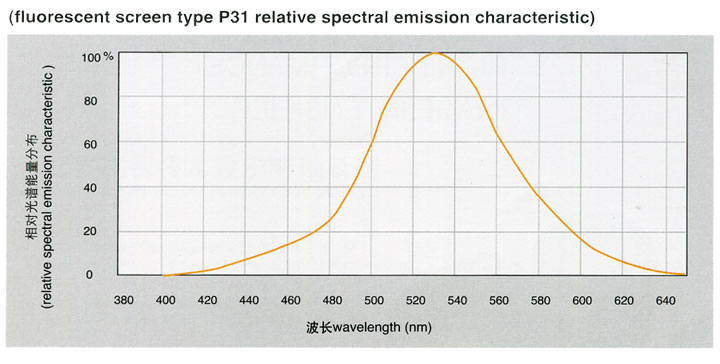

Phosphor Screen P20 P20 P39 P39

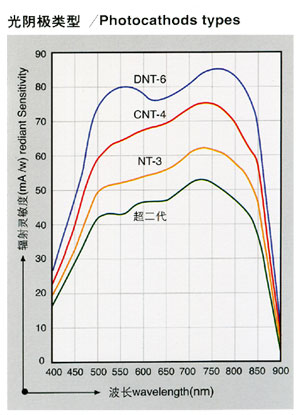

Photocathode sensitivity
2856K µA/lm 300 350 300 350
800nm mA/W 25 30 25 30
850nm mA/W 20 25 20 20

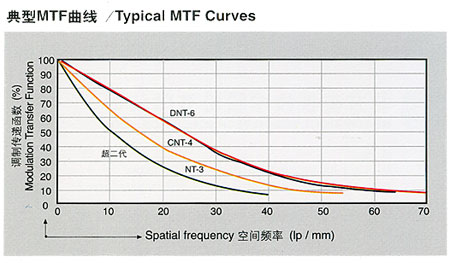

Resoltion
Center lp/mm 45 50 36 36
Edge lp/mm 40 45 32 32
Gain cd/m2 /lx 8000 10000 16000 16000
EBI µlx 0.2 0.2 0.2 0.2
S/N (108µlx) 3.2 3.5 3.2 3.2
magnification 1.5 1.5 1 1
Input curent mA 30 30 32 32
Input voltage V 2.7 2.7 2.7 2.7
Mass g 350 350 350 350
Dimensions mm φ62×80 φ62×80 φ63×76 φ63×76
Remark
FO : Fiber optic, AVG : Anti veiling glare, G: glass, EBI : Equivalent background illumination, Useful dia. : Useful diameter S/N : Signal to noise at 1.0810-4lx
