Art No. : 18mm wafer series require sample
18mm wafer series empty

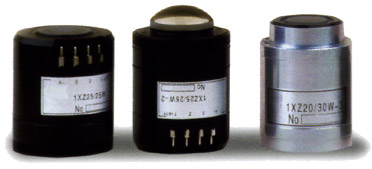

With photoelectric system,the series of modules is closely focused, with S25 photocathode, microchannel plate and BAF or P31 phosphor.Its magnification is 1. Basically there have two styles, straight fiber optic (non-inverted image) and twister (inverted image).

This series of assembly includes an modules and integral high voltage power supply Their features are outstanding, such as small size, on distortion, polarity protection, auto brightness control, flash protection and lower input current, etc. They are able to operate in different environmental conditions conformed to environmental test requirements of products, such as high temperature low temperature vibration and shock.

The wafer tubes could be supplied with a combination of various input windows, output surface, electrical interface, dimension etc. Input window could be fiber optic, anti-veiling glass, quartz and other special crystals. Output surface could be straight or sphere. Many alternatives with phosphor, as P20, P31, P39, and P43. Electrical interface could be flying lead or connector. Dimension could be Φ43 or Φ37 with optical length 16.9 or 25.2 or other length. In addition, the tubes could be supplied in standard gain and high gain which could be controlled inside tube or outside tube.


Type 1XZ18/18W
(xx1450)
1XZ18/18W-1
(xx1440)
1XZ18/18W-2
(xx1450)
1XZ18/18W-3
(xx1509)
useful dia.
Input mm 18 18 18 18
output mm 18 18 18 18
Window
Inout mm FO FO FO FO
output mm FO T FO T
Gathode S25 S25 S25 S25
Phosphor Screen BAF BAF BAF BAF
Photocathode sensitivity
2856K µA/lm 350 350 350 400
800nm mA/W 30 30 30 32
850nm mA/W 25 25 25 20
Resoltion
Center lp/mm 45 45 45 45
Edge lp/mm 45 45 45 45
Gain cd/m2 /lx 4800 4800 4800 9600
EBI µlx 0.25 0.25 0.25 0.25
S/N (108µlx) 14 14 14 16
Input curent mA 16 16 16 16
Input voltage V 2.7 2.7 2.7 2.7
Mass g 98 98 98 220
Dimensions mm  Φ43×30 Φ43×30 Φ43×30 Φ53×56
Remark / / / /
Remark
FO : Fiber optic, AVG : Anti veiling glare, T : Twister, L: Optical length, EBI : Equivalent background illumination, Useful dia. : Useful diameter S/N : Signal to noise at 1.08×10-4lx
